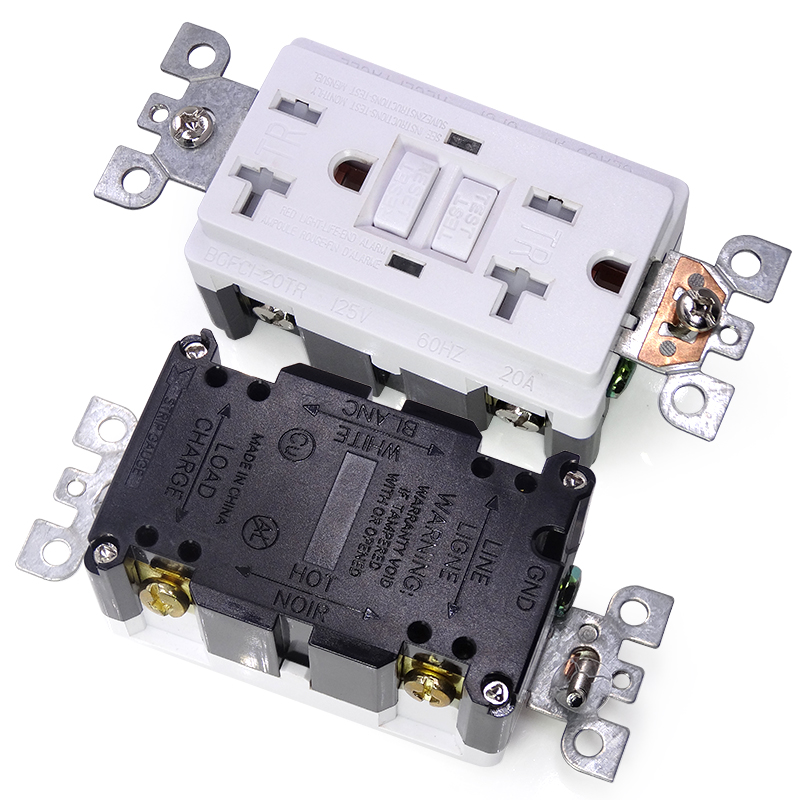

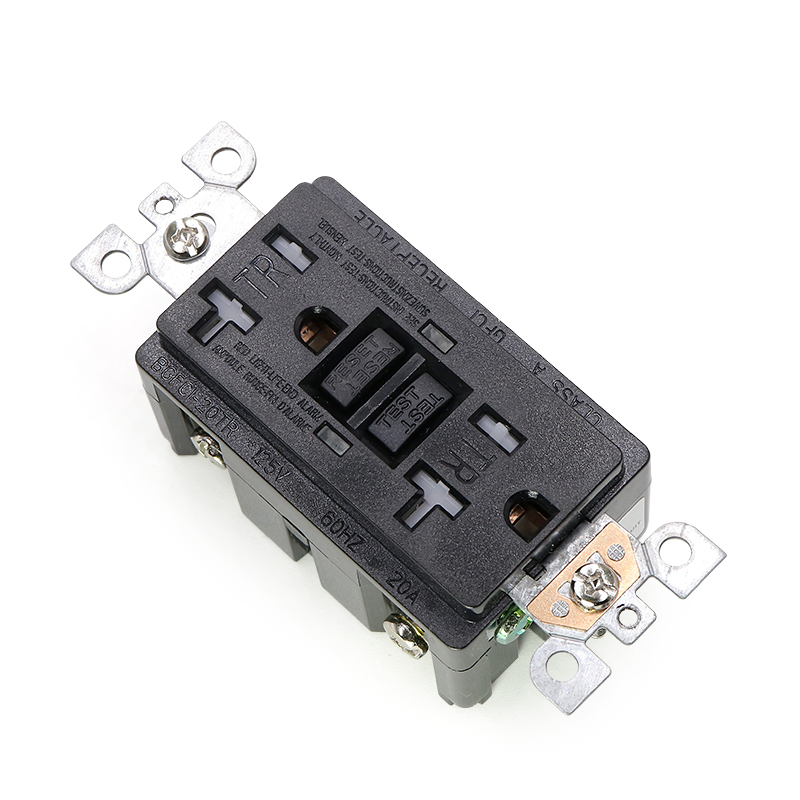

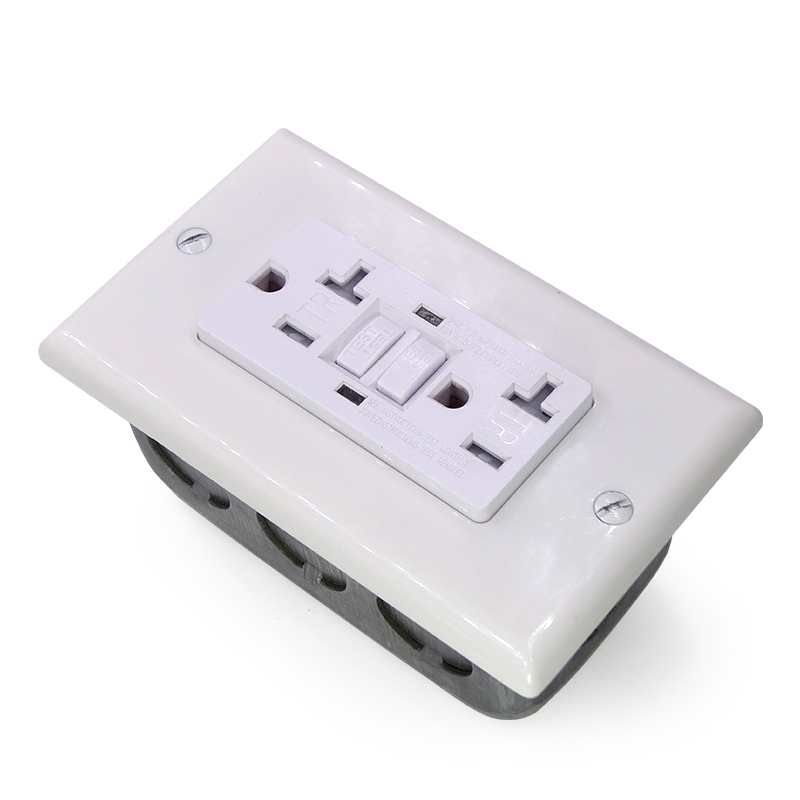

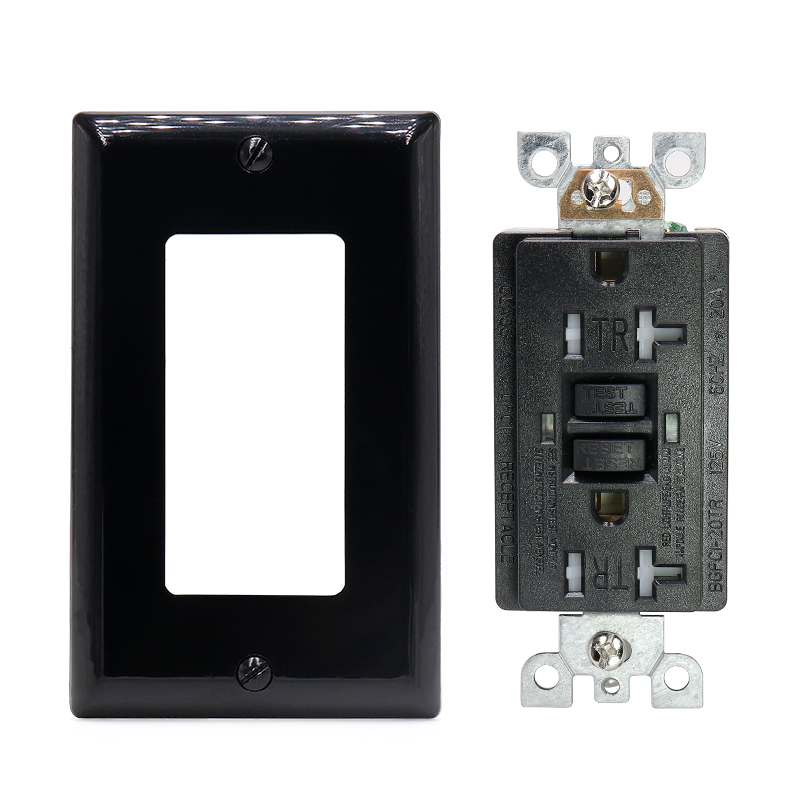

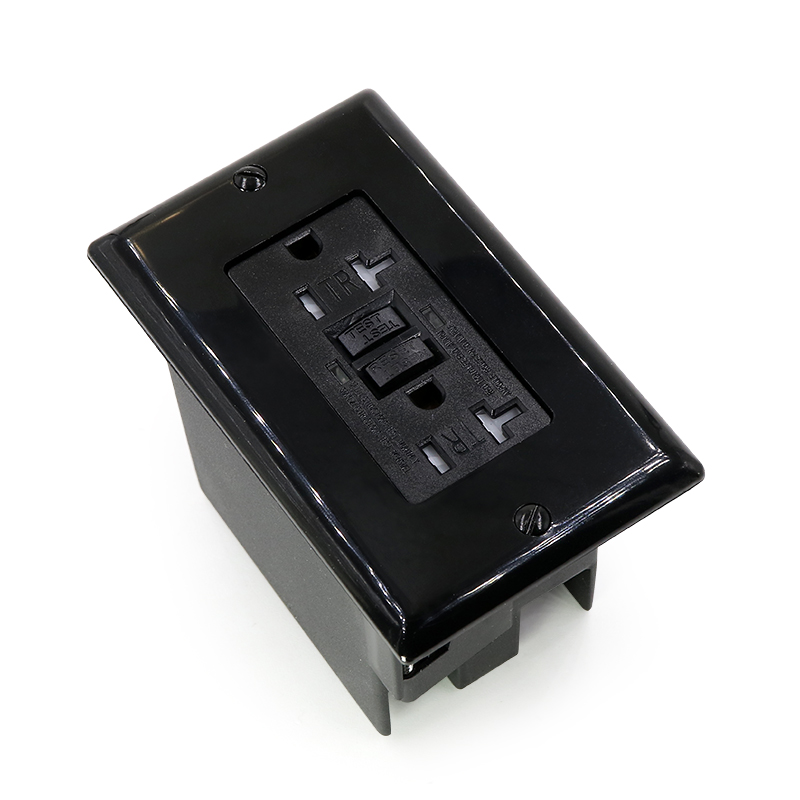

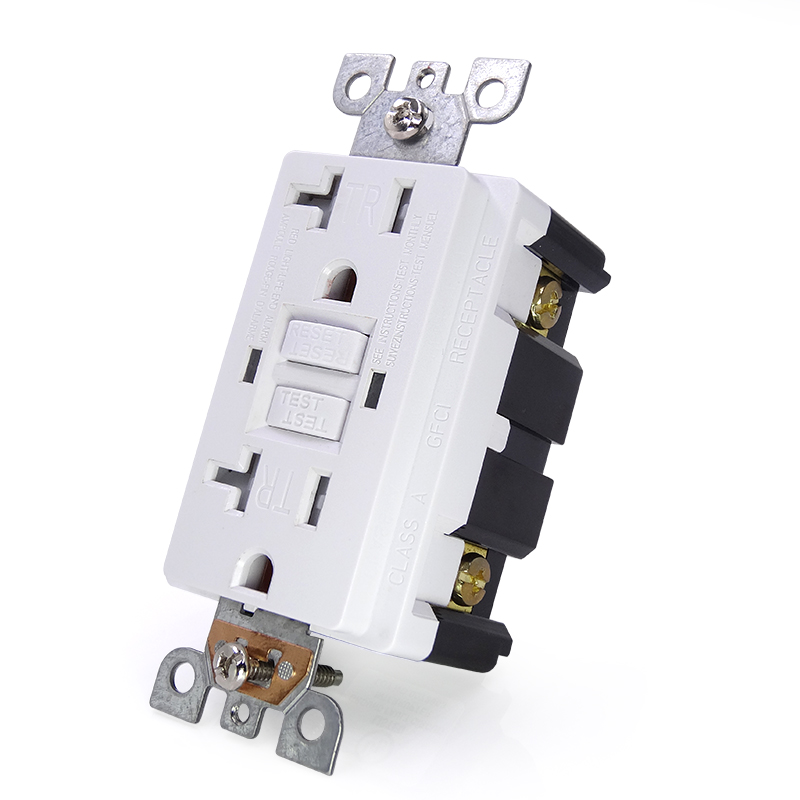

GFCI Receptacle 20A With protecting American Sockets ( Self-Test )
Color : White/Black
Brand name : Bosslyn
Certification : UL&CUL E500632
Grounding : Standard Grounding
Body Material : PC
Terminal Screws : Brass
Rated working current : 20A
Rated working voltage : 125V
Products for commercial，household，lighting
Good heat dissipation
Blade design of copper alloy contacts，good conductivity
Super high impact resistance and thermal stability
Cover pans are made of high quality polycarbonate
Chemical corrosion resistance
Fingerprint-resistant zinc plated mounting brackets
Grounding One-piece grounding design
Security Security doors designed to prevent people accidental exposure
Unloaded plug≥5000Sec Loop detection
with automatic monitoring function
■Meet the standardcs：
UL498 UL943 CSA-C22.2 NO.42
Housing material flame retardant grades
■Specifications、Electrical performance、Ambient temperature：
Rated working current：20A
Rated working voltage：125V
Power frequency： 60Hz
Tripping threshold：5mA Tripping time＜25ms
Surge current：6000V/3000A 6000V/10KA
Electric strength：Pressure resistance1500V 50Hz Duration 1Min
Black Brown White lvory Almond Gray
