15A With protecting American Sockets (BR-15S)

 Product Overview

■Product application :

Products for commercial，household，lighting

 ■Product features :

Good heat dissipation

Blade design of copper alloy contacts，good conductivity

Super high impact resistance and thermal stability

Cover pans are made of high quality polycarbonate

Chemical corrosion resistance

Corrosion resistant galvanized mounting bracket

Grounding、Connection mode

One-piece grounding design

lip in type wiring，spring sheet lock，suitable for #14AWG hard copper wire

Security doors designed to prevent people accidental exposure

■Mechanical characteristics :

Mechanical life

Plug provided 5000 times with no load，continuous flashing

■Meet the standard :

 UL498  CSA-C22.2 NO.42

Housing material flame retardant grades

■Specifications、Electrical performance、Ambient temperature:

Rated working current：15A

Rated working voltage：125V

Power frequency： 60Hz

Electric strength：Pressure resistance2000V 50Hz Duration 1Min

Working temperature：-30℃~70℃

Insulation resistance：＞50MΩ（DC500V）

■Colour :

Black /Brown /White /lvory /Almond /Gray /Red

■HOW TO BUY FROM US :

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

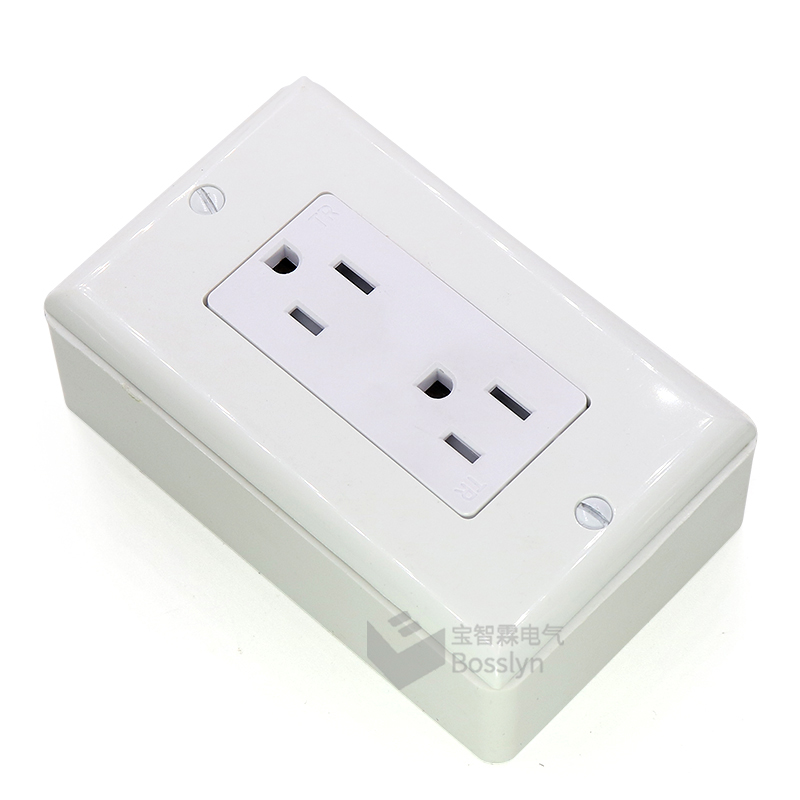

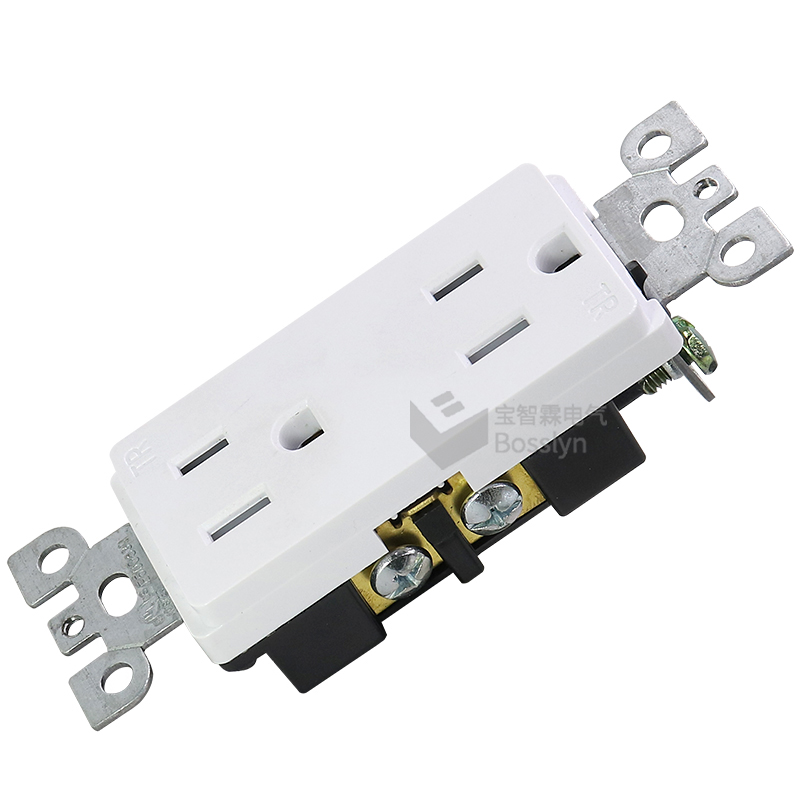

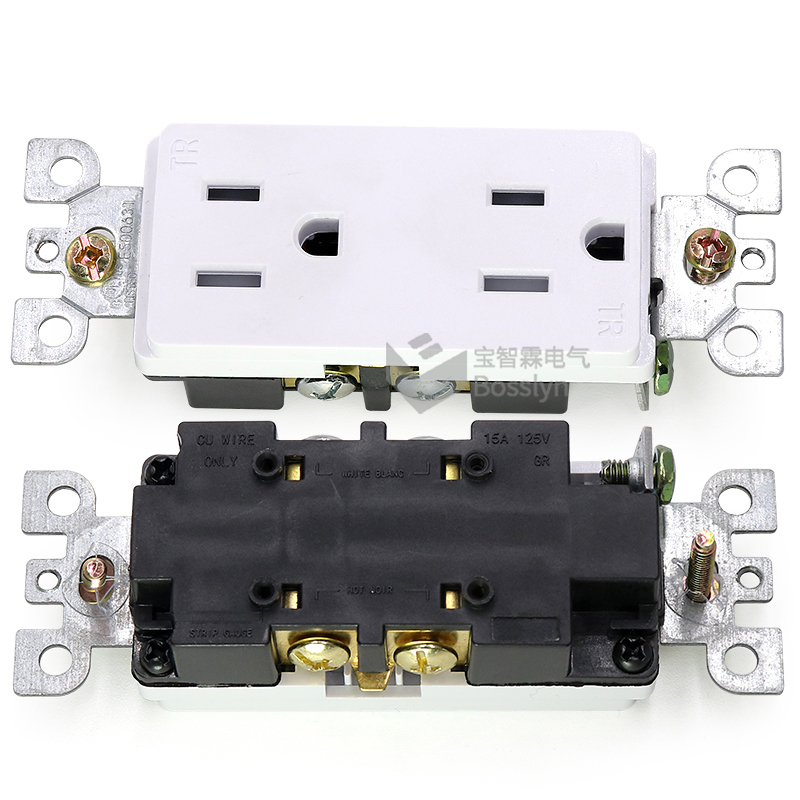

Photos Details
