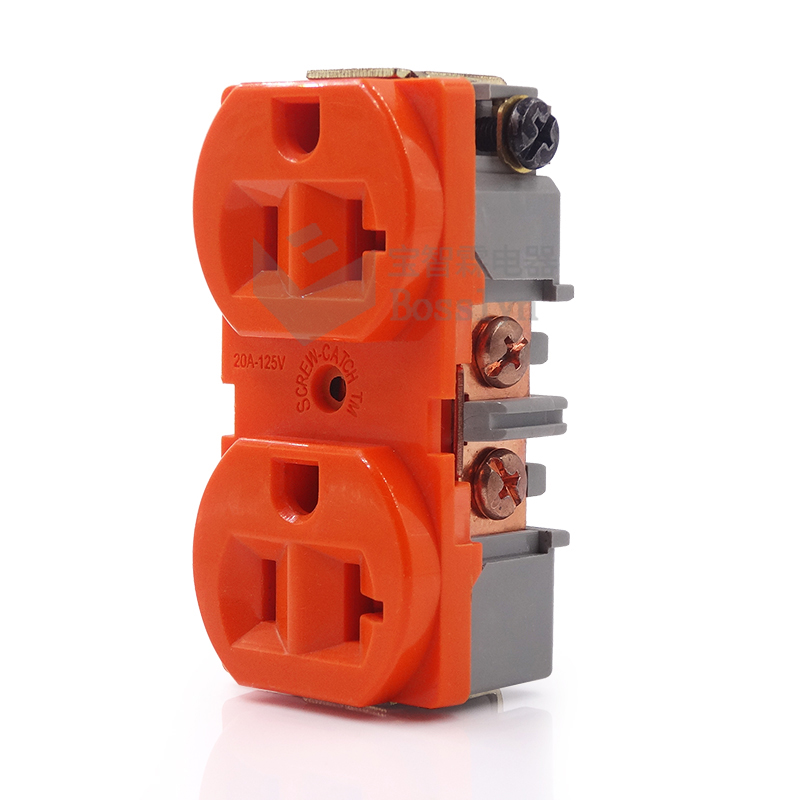

20A With protecting American Industrial Sockets (NEMA5 -20R)

Modle             :  NEMA5 -20R

Color             :Reddish orange

Brand name   :  Bosslyn

Certification  : UL&CUL  E500631

Grounding      :   Standard Grounding

 Body  Material  :  PC
Terminal  Screws  :  Brass

Rated working current:20A

Rated working voltage:125V​​​​​​​

     Product Overview


    Product application :

    Products for commercial,household,lighting

     Product features :

    Good heat dissipation

    Blade design of copper alloy contacts,good conductivity

    Super high impact resistance and thermal stability

    Cover pans are made of high quality polycarbonate

    Chemical corrosion resistance

    Corrosion resistant galvanized mounting bracket

    Grounding、Connection mode

    One-piece grounding design

    lip in type wiring,spring sheet lock,suitable for #14AWG hard copper wire

    Security doors designed to prevent people accidental exposure

    Mechanical characteristics :

    Mechanical life

    Plug provided 5000 times with no load,continuous flashing

    Meet the standard :

     UL498  CSA-C22.2 NO.42

    Housing material flame retardant grades

    Specifications、Electrical performance、Ambient temperature:

    Rated working current:20A

    Rated working voltage:125V

    Power frequency: 60Hz

    Electric strength:Pressure resistance2000V 50Hz Duration 1Min

    Working temperature:-30℃~70℃

    Insulation resistance:>50MΩ(DC500V)

    Colour :

    Black /Brown /White /lvory /Almond /Gray /Red
