NEMA L6-30 US Male NEMA Plug Twist Lock Locking Plug 30A 250V (BL630P)

 Product Overview

■Basic information :

Model number                                           BL630P

NEMA Configuration                                  NEMAL6-30

Wiring Scheme                                          2 Pole, 3 Wire Grounding

Amperage/Voltage                                     30 Amp/250V AC

Color:Blade Holder Material                        Gray Polycarbonate

Retainer Material                                        Clear Polycarbonate

Housing Material                                        Nylon

Cord Clamp Material                                   Nylon

Blade Material                                             Brass

Terminal Screw Material                              Brass

Ground Screw Material                                Brass

Rohs Compliant                                          Yes

Shipping way                                              By air/sea/express

Place of Origin                                            Guangdong, China (Mainland)

Sample day                                                1-3days

Mass order Lead time                                 8-15days

 ■Product features :

1.It is made with American Dupont nylon and 100% full brass pin
2.UL or CUL certificate and UL File Number : E500807  (Standard: UL 498)
3. Rated Voltage: 250-Volts, 30-Amps, AC 60HZ
4. Plug Type: Electrical Straight Blade Plug, Screw Type
5. Terminal Accommodation : 10/3, 12/3, 14/3, 16/3, 18/3 AWG Size Conductors
6. Strain Relief or Cord Grif Range): 0.300-0.655 DIA
7. Screw Torque / Terminal Screws: 12 In. Lbs
8. Strain Relief / Assembly Screws= 8-10 In. Lbs.
9. Temperature Range: Max. +75℃; Min -45℃
10. Provide one-year guarantee service

■HOW TO BUY FROM US :

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

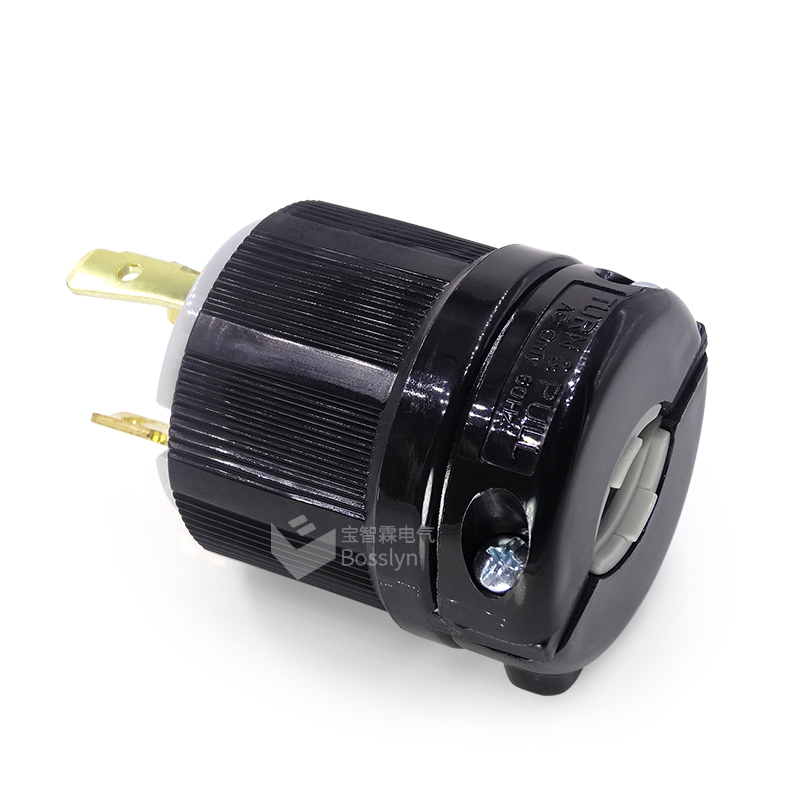

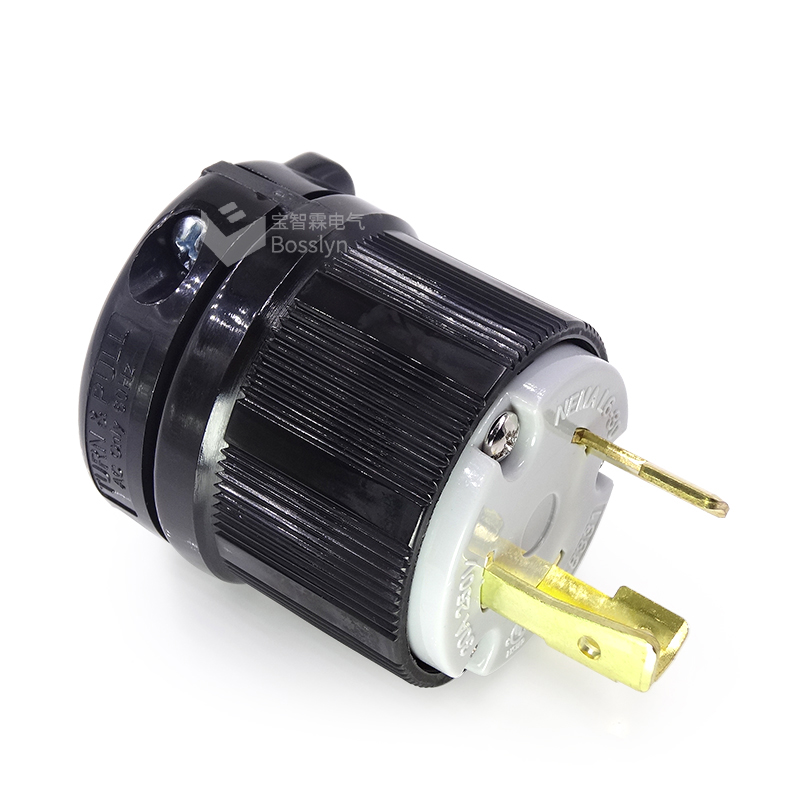

Photos Details
