NEMAL5-15 UL Locking Flanged Inlet American Standard Plug 15A 125V (BL515FI)

 Product Overview

■Basic information :

Model number                                           BL515FI

NEMA Configuration                                  NEMAL5-15

Wiring Scheme                                           2 Pole, 3 Wire Grounding

Amperage/Voltage                                     15 Amp/125V AC

Color                                                          White

Retainer Material                                        Clear Polycarbonate

Housing Material                                        Nylon-Black

Cord Clamp Material                                   Nylon-Black

Blade Material                                             Brass

Terminal Screw Material                             Brass

Ground Screw Material                               Brass

Rohs Compliant                                         Yes

Shipping way                                             By air/sea/express

Place of Origin                                           Guangdong, China (Mainland)

Sample day                                                1-3days

Mass order Lead time                                 8-15days

 ■Product features :

1.It is made with American Dupont nylon and 100% full brass pin
2.UL or CUL certificate and UL File Number : E500807  (Standard: UL 498)
3. Rated Voltage: 125-Volts, 15-Amps, AC 60HZ
4. NEMA Configuration : NEMA L5-15P ,Fangled Inlet Style
5. Wiring&Connecting: 2-Pole, 3-Wire Grounding
6. Strain Relief / Assembly Screws= 8-10 In. Lbs.
7. Screw Torque / Terminal Screws: 12 In. Lbs
8. Recommended Terminals Torque: 12-16IN. LBS
9. Temperature Range: Max. +75℃; Min -45℃

10.Thread Type: 8/32 steel mounting screws, corrision resistant.
11. Provide one-year guarantee service

■HOW TO BUY FROM US :

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

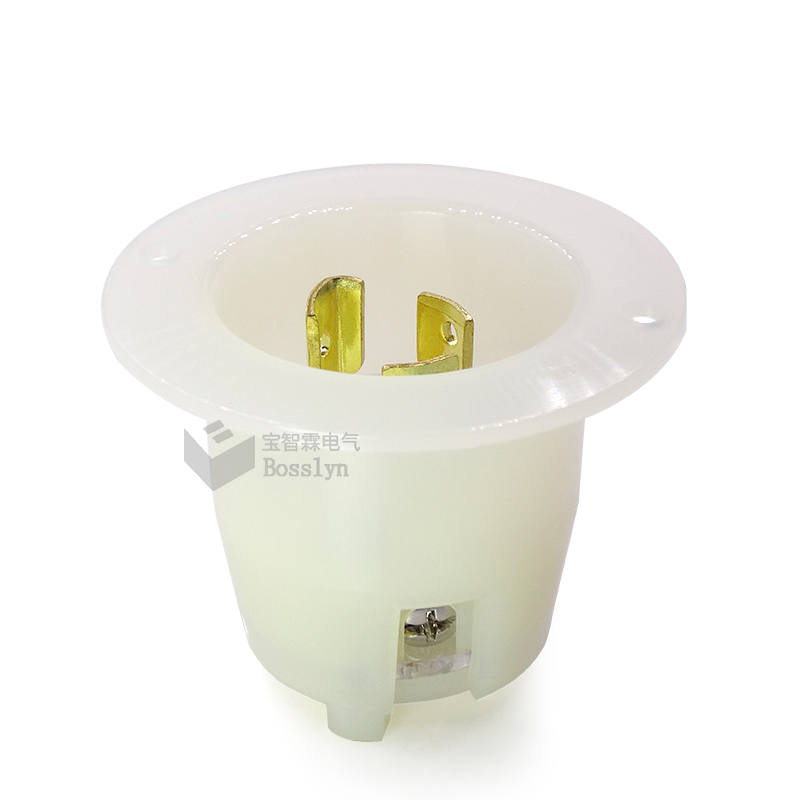

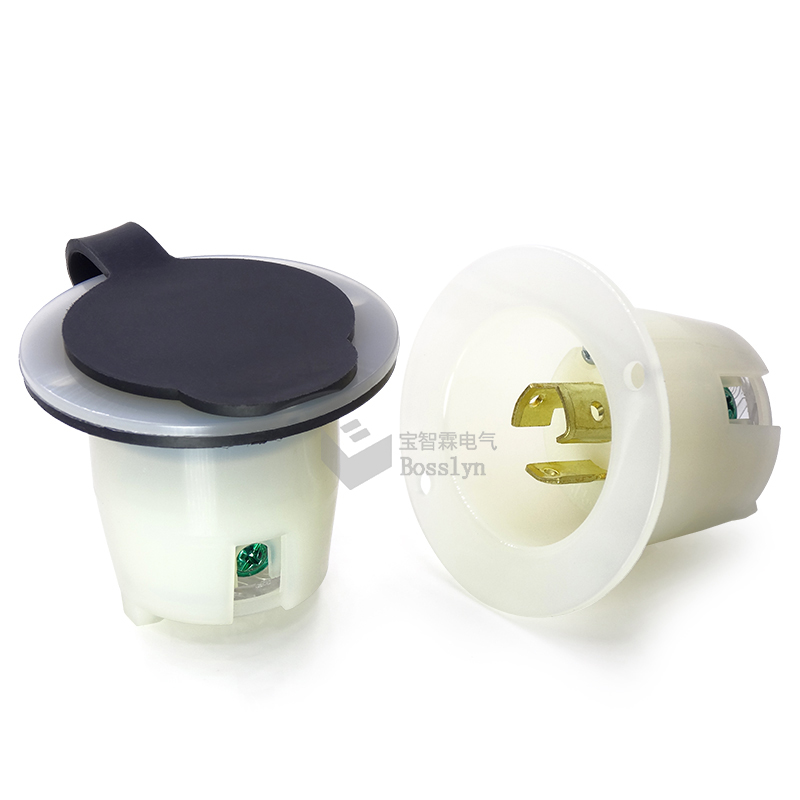

Photos Details
