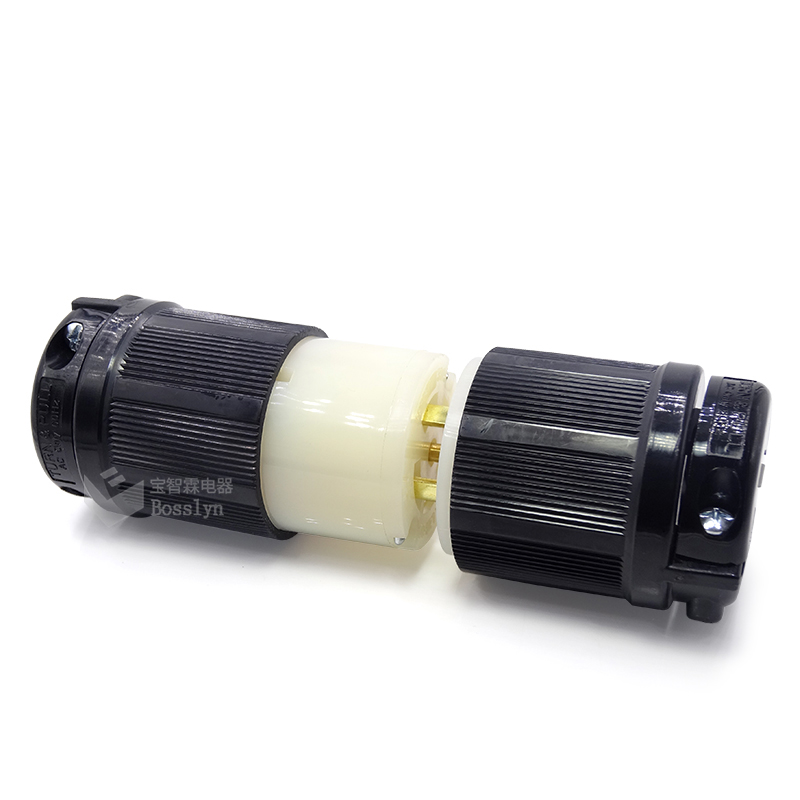

NEMAL21-30 American Locking Rewirable Connector Female NEMA Connector 30A 120/208V (BL2130C)
Color ： Black
Brand name : Bosslyn
Certification ： ULE500807 ROHS
Grounding : Standard Grounding
Housing Material : Nylon
Blade Material ： Brass
Rated working current ： 30A
Rated working voltage ：120/208V
■Basic information :
Model number BL2130C
NEMA Configuration NEMAL21-30
Wiring Scheme 4 Pole, 5 Wire Grounding
Amperage/Voltage 30 Amp/ 120/208V AC
Retainer Material Clear Polycarbonate
Housing Material Nylon-Black
Cord Clamp Material Nylon-Black
Blade Material Brass
Terminal Screw Material Brass
Ground Screw Material Brass
Rohs Compliant Yes
Shipping way By air/sea/express
Place of Origin Guangdong, China (Mainland)
Sample day 1-3days
Mass order Lead time 8-15days
■Product features :
1.It is made with American Dupont nylon and 100% full brass pin
2.UL or CUL certificate and UL File Number : E500807 (Standard: UL 498)
3. Rated Voltage: 120/208Volts, 30-Amps, AC 60HZ
4. Individual wiring compartments with tapered channel for easy insertion of wires
5. Mounting holes interchangeable with competitive units
6. Strain Relief or Cord Grif Range): 0.300-0.655 DIA
7. Screw Torque / Terminal Screws: 12 In. Lbs
8. Strain Relief / Assembly Screws= 8-10 In. Lbs.
9. Temperature Range: Max. +75℃; Min -45℃
10. Provide one-year guarantee service
