Bosslyn UL Listed 20 Amp 125V GFCI outlet with switch

Product Overview

■Product application ：

Products for commercial，household，lighting

■Product features ：

Good heat dissipation

Blade design of copper alloy contacts，good conductivity

Super high impact resistance and thermal stability

Cover pans are made of high quality polycarbonate

Chemical corrosion resistance

Fingerprint-resistant zinc plated mounting brackets

Grounding One-piece grounding design

Security Security doors designed to prevent people accidental exposure

■Mechanical characteristics ：

Mechanical life

Unloaded plug≥5000Sec Loop detection

with automatic monitoring function

■Meet the standard ：

UL498 UL943 CSA-C22.2 NO.42

Housing material flame retardant grades

■Specifications、Electrical performance、Ambient temperature ：

Rated working current：20A

Rated working voltage：125V

Power frequency：60Hz

Tripping threshold：5mA  Tripping time＜25ms

Surge current：6000V/3000A  6000V/10KA

Electric strength：Pressure resistance1500V 50Hz Duration 1Min

Working temperature：-35℃~66℃

Insulation resistance：＞50MΩ（DC500V）

Short-circuit current：10KA

■Colour ：

Black White

■HOW TO BUY FROM US ：

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

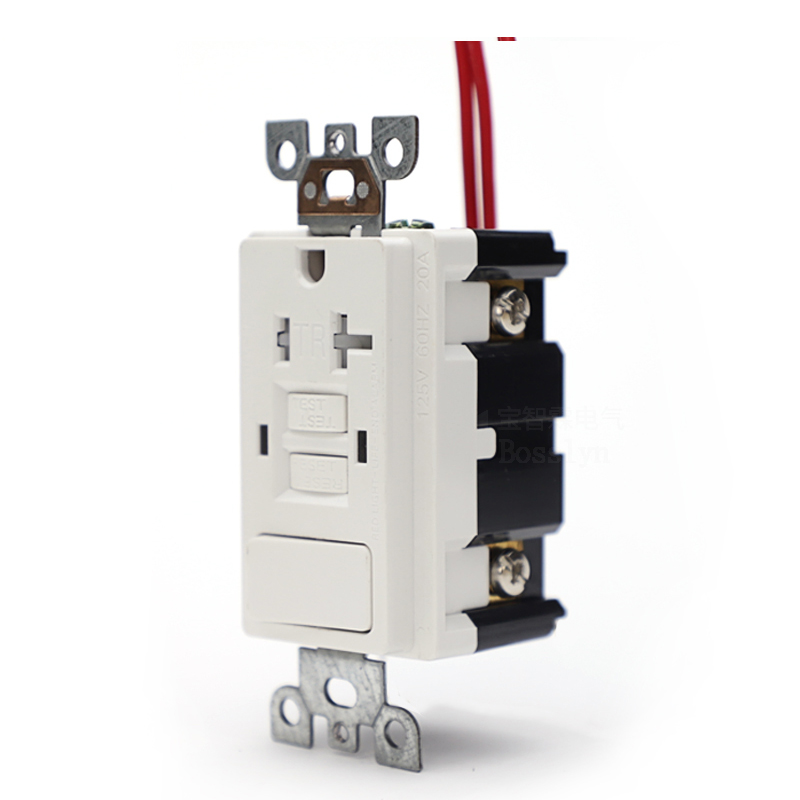

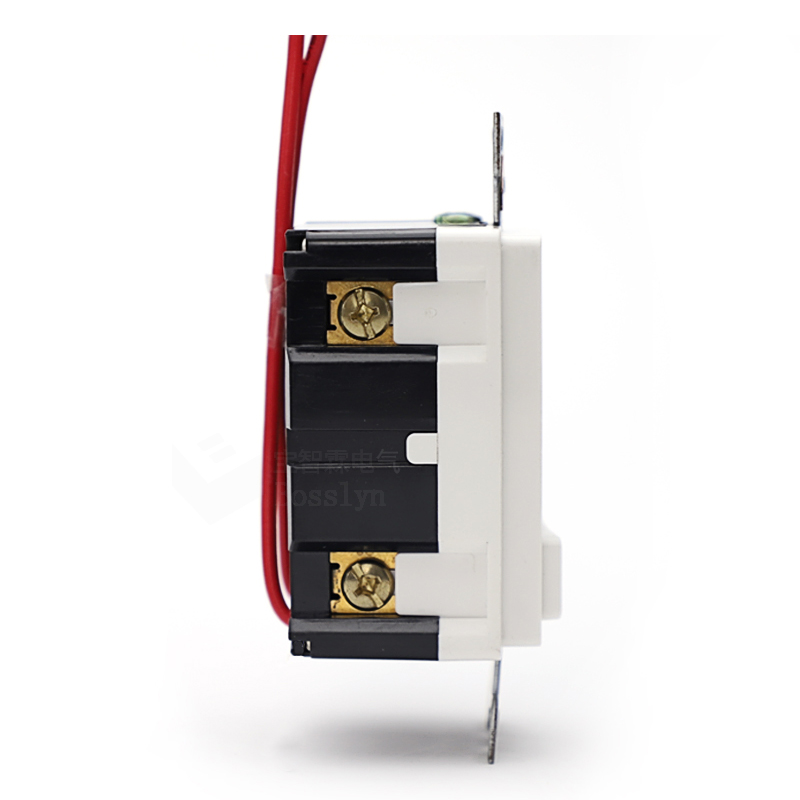

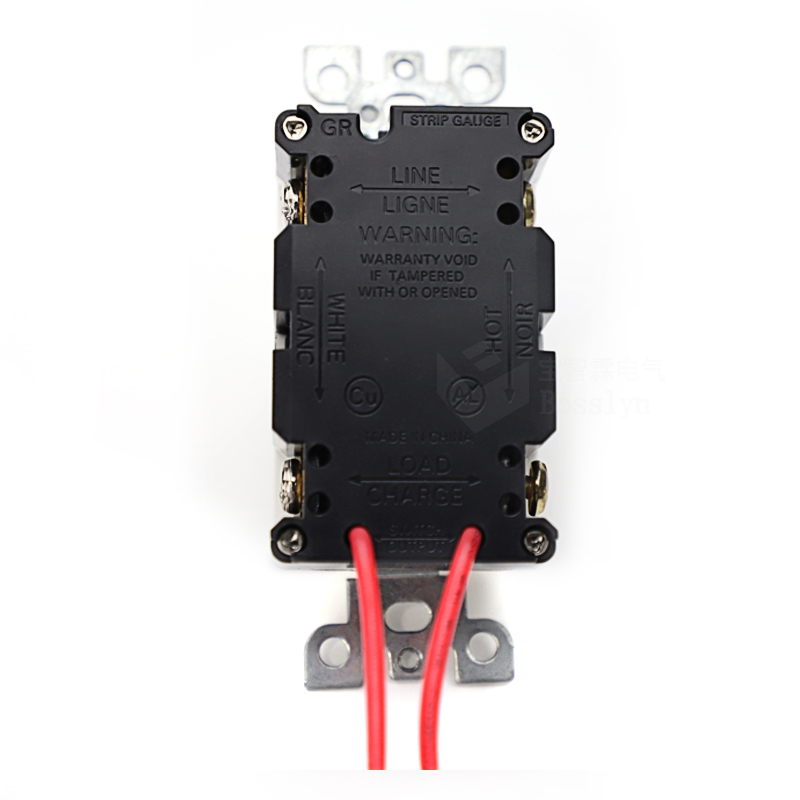

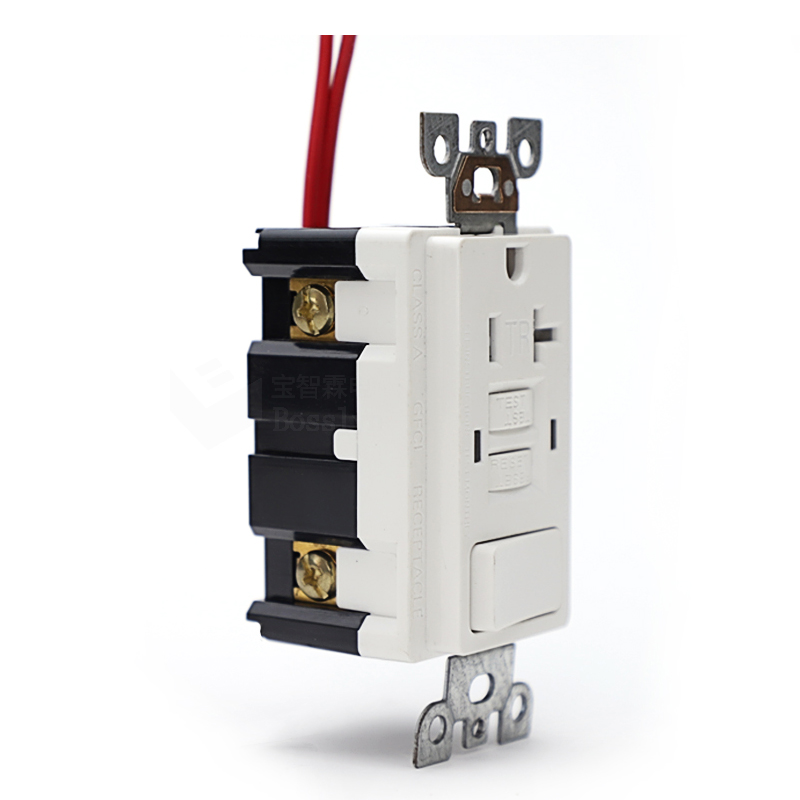

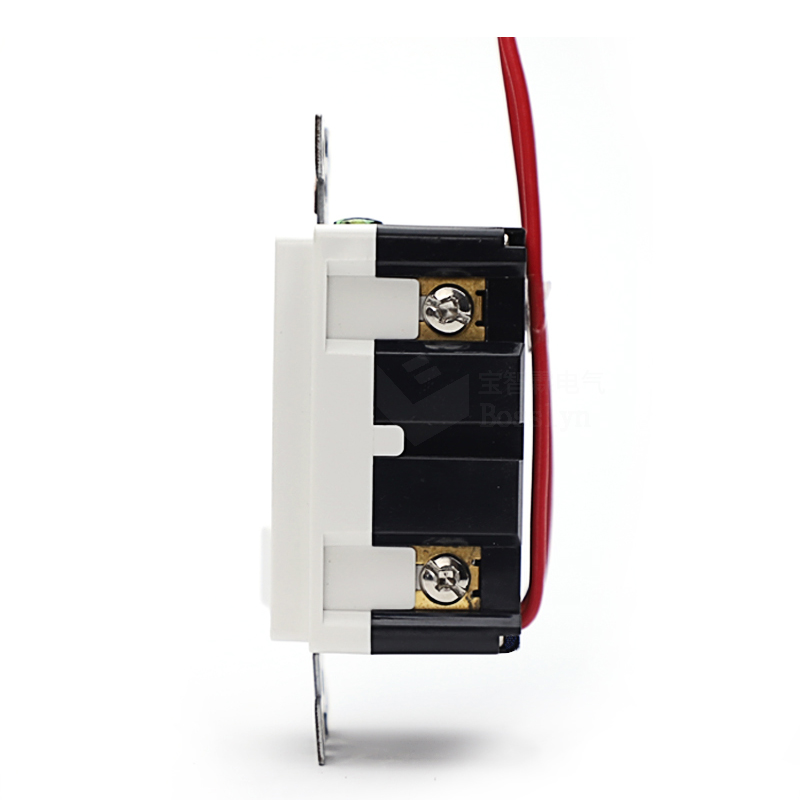

PHOTOS  Details
