GFCI 20A American Sockets ( Self-Text ) GFCI Receptacle

Modle             :  BGFCI-20

Color              :  White

Brand name   :  Bosslyn

Certification    :  UL&CUL  E500632

Grounding      :  Standard Grounding

 Body  Material  :  PC

Terminal  Screws  :  Brass

Rated working current  : 20A

Rated working voltage  : 125V
  •

    Product Overview



    Product application

    Products for commercial,household,lighting


    Product features

    Good heat dissipation

    Blade design of copper alloy contacts,good conductivity

    Super high impact resistance and thermal stability

    Cover pans are made of high quality polycarbonate

    Chemical corrosion resistance

    Fingerprint-resistant zinc plated mounting brackets

    Grounding One-piece grounding design


    Mechanicail characteristics

    Mechanical life

    Unloaded plug≥5000Sec Loop detection

    with automatic monitoring function

    Meet the standard

    UL498 UL943 CSA-C22.2 NO.42

    Housing material flame retardant grades


    Specifications、Electrical performance、Ambient temperature

    Specifications、Electrical performance、Ambient  temperature

    Rated working current:20A

    Rated working voltage:125V

    Power frequency:60Hz

    Tripping threshold:5mA Tripping time<25ms

    Surge current:6000V/3000A  6000V/10KA

    Electric strength:Pressure resistance1500V 50Hz Duration 1Min

    Working temperature:-35℃~66℃

    Insulation resistance:>50MΩ(DC500V)

    Short-circuit current:10KA


    Colour

    Black /Brown/White/lvory/Almond /Gray


    HOW TO BUY FROM US

    1.  Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
    2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
     3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
    4. As soon as the goods are shipped out, we will let you know the tracking number.
    5. For after sales-service. Please contact the sales persons directly or contact us.




    Photos Details









    BGFCI-20-2

    BGFCI-20-8

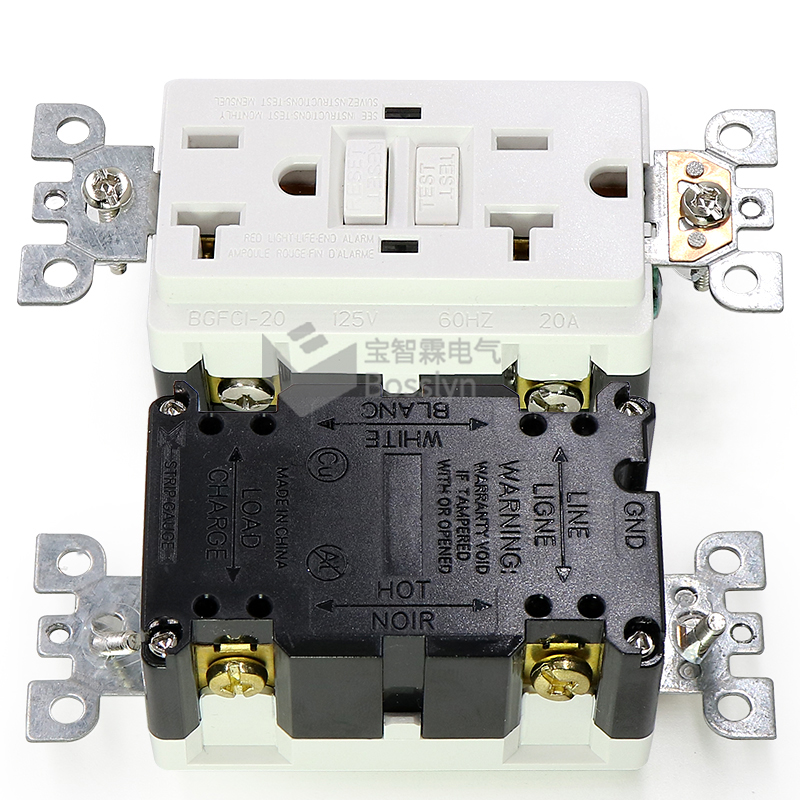

    BGFCI-20-1

    BGFCI-20-6

    BGFCI-20-7

    BGFCI-20-5

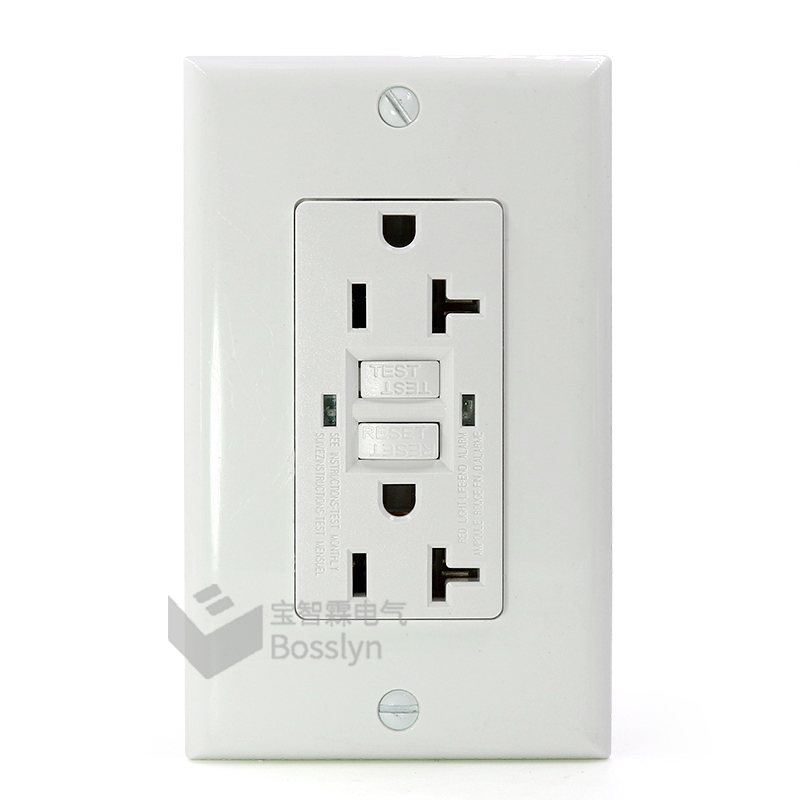

    BGFCI-20-4
