NEMAL5-20 UL Locking Flanged Inlet American Standard Plug 20A 125V (BL520FI)

Modle              :    BL520FI

Color              :  White

Brand name    :   Bosslyn

Certification   :  ULE500807 ROHS

Grounding       :   Standard Grounding

Housing Material  :   Nylon

Blade    Material  :  Brass

Rated working current : 20A

Rated working voltage : 125V​​​​​​​
  •

     Product Overview




    Basic information :

    Model number                                           BL520FI


    NEMA Configuration                                  NEMAL5-20


    Wiring Scheme                                           2 Pole, 3 Wire Grounding


    Amperage/Voltage                                     20 Amp/125V AC


    Color                                                          White


    Retainer Material                                        Clear Polycarbonate


    Housing Material                                        Nylon-Black


    Cord Clamp Material                                   Nylon-Black


    Blade Material                                             Brass


    Terminal Screw Material                             Brass


    Ground Screw Material                               Brass


    Rohs Compliant                                         Yes


    Shipping way                                             By air/sea/express


    Place of Origin                                           Guangdong, China (Mainland)


    Sample day                                                1-3days


    Mass order Lead time                                 8-15days



     Product features :

    1.It is made with American Dupont nylon and 100% full brass pin
    2.UL or CUL certificate and UL File Number : E500807  (Standard: UL 498)
    3. Rated Voltage: 125-Volts, 20-Amps, AC 60HZ
    4. NEMA Configuration : NEMA L5-20P ,Fangled Inlet Style
    5. Wiring&Connecting: 2-Pole, 3-Wire Grounding
    6. Strain Relief / Assembly Screws= 8-10 In. Lbs.
    7. Screw Torque / Terminal Screws: 12 In. Lbs
    8. Recommended Terminals Torque: 12-16IN. LBS
    9. Temperature Range: Max. +75℃; Min -45℃

    10.Thread Type: 8/32 steel mounting screws, corrision resistant.
    11. Provide one-year guarantee service



    HOW TO BUY FROM US :

    1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
    2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
    3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
    4. As soon as the goods are shipped out, we will let you know the tracking number.
    5. For after sales-service. Please contact the sales persons directly or contact us.



    Photos Details

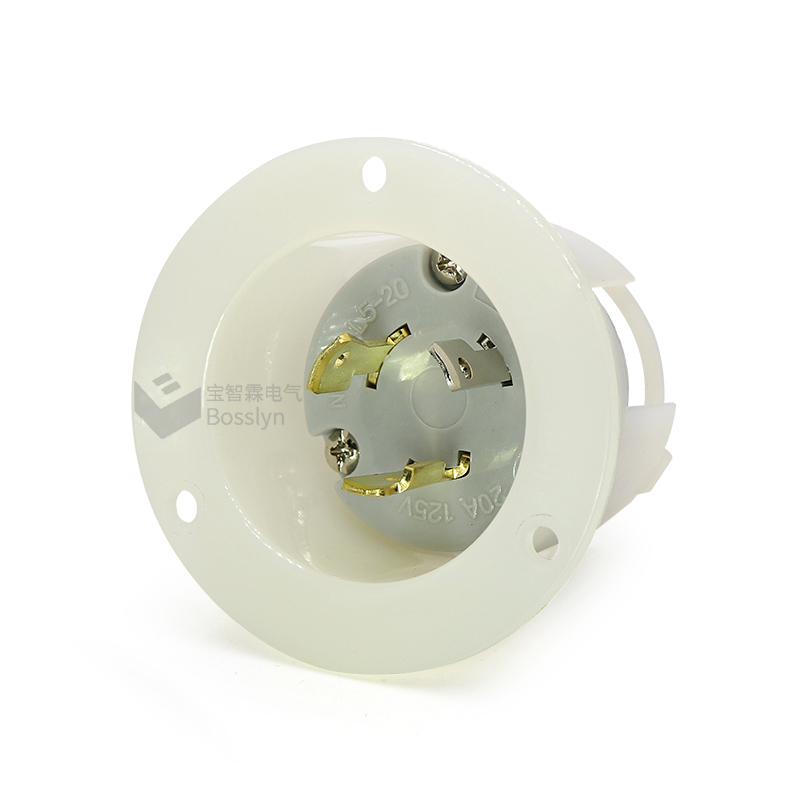

    BL520FI-4

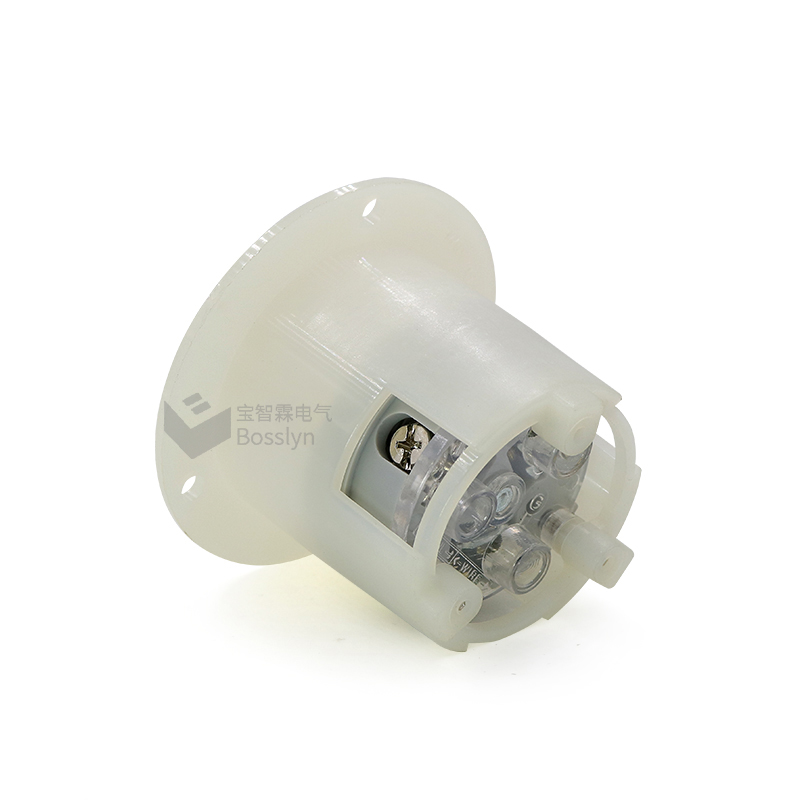

    BL520FI-5BL520FI-6BL520FI-1

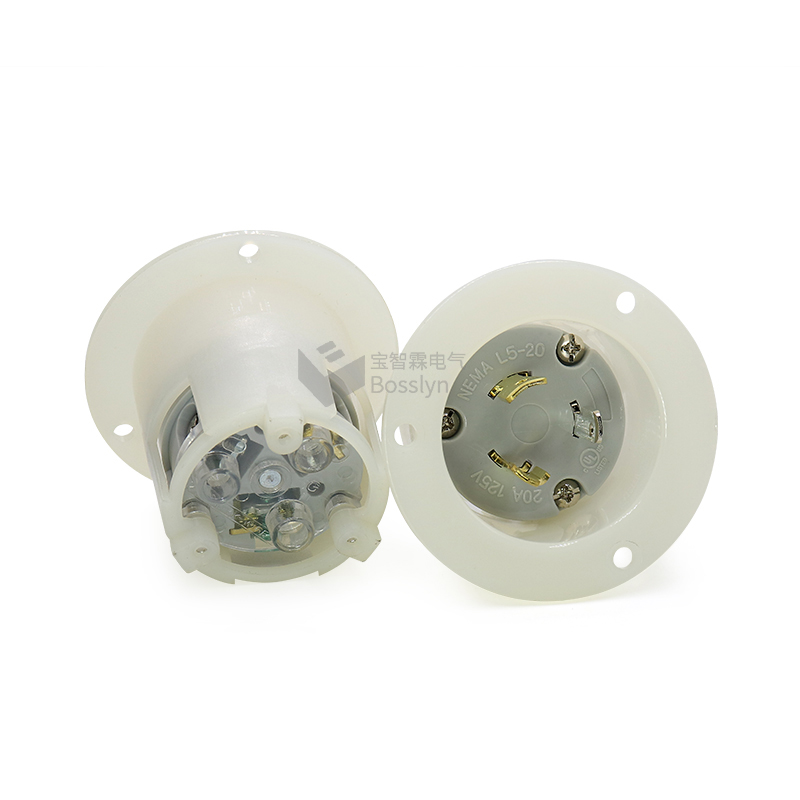

    BL520FI-2
