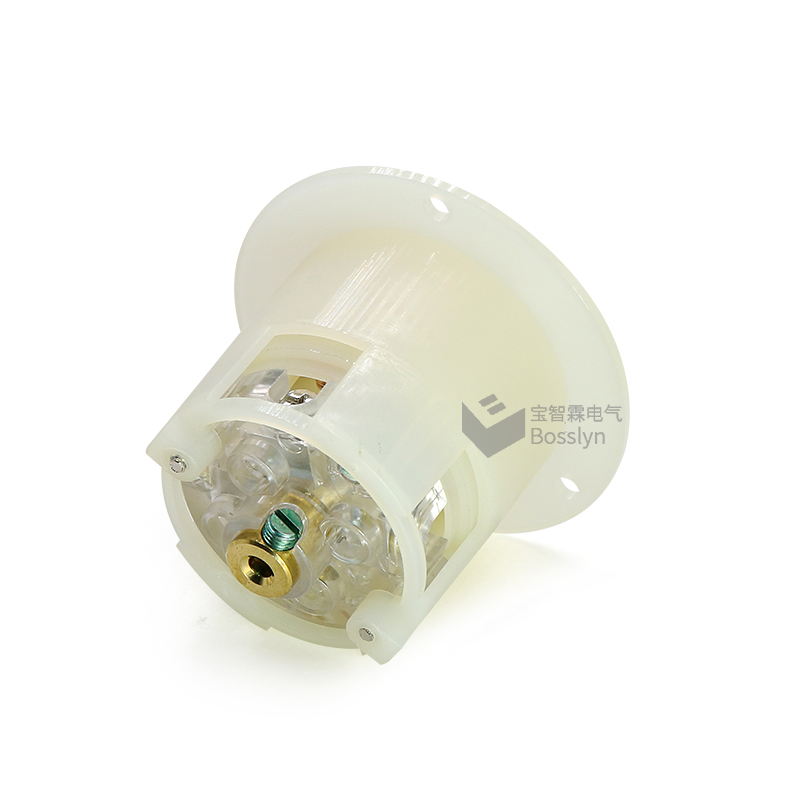

NEMAL21-30 UL Locking Flanged Inlet American Standard Plug 30A 120/208V (BL2130FI)
Color ： White
Brand name : Bosslyn
Certification ： ULE500807 ROHS
Grounding : Standard Grounding
Housing Material : Nylon
Blade Material ： Brass
Rated working current ： 30A
Rated working voltage ：120/208V
■Basic information :
Model number BL2130FI
NEMA Configuration NEMAL21-30
Wiring Scheme 4 Pole, 5 Wire Grounding
Amperage/Voltage 30 Amp/ 120/208V AC
Retainer Material Clear Polycarbonate
Housing Material Nylon
Cord Clamp Material Nylon
Blade Material Brass
Terminal Screw Material Brass
Ground Screw Material Brass
Rohs Compliant Yes
Shipping way By air/sea/express
Place of Origin Guangdong, China (Mainland)
Sample day 1-3days
Mass order Lead time 8-15days
■Product features :
1.It is made with American Dupont nylon and 100% full brass pin
2.UL or CUL certificate and UL File Number : E500807 (Standard: UL 498)
3. Rated Voltage: 120/208-Volts, 30-Amps, AC 60HZ
4. NEMA Configuration : NEMA L15-20P ,Fangled Inlet Style
5. Wiring&Connecting: 4-Pole, 5-Wire Grounding
6. Strain Relief / Assembly Screws= 8-10 In. Lbs.
7. Screw Torque / Terminal Screws: 12 In. Lbs
8. Recommended Terminals Torque: 12-16IN. LBS
9. Temperature Range: Max. +75℃; Min -45℃
10.Thread Type: 8/32 steel mounting screws, corrision resistant.
11. Provide one-year guarantee service
