NEMAL21-20 American Female NEMA Locking Flanged Outlet Power Receptacle 20A 120/208V (BL2120FO)

Modle              :    BL2120FO

Color              :  White

Brand name    :   Bosslyn

Certification   :  ULE500807 ROHS

Grounding       :   Standard Grounding

Housing Material  :   Nylon

Blade    Material  :  Brass

Rated working current : 20A

Rated working voltage : 120/208V​​​​​​​
  •

     Product Overview




    Basic information :

    Model number                                           BL2120FO


    NEMA Configuration                                   NEMAL21-20


    Wiring Scheme                                           4 Pole, 5 Wire Grounding


    Amperage/Voltage                                     20 Amp/ 120/208V AC


    Color                                                          White


    Retainer Material                                        Clear Polycarbonate


    Housing Material                                        Nylon


    Cord Clamp Material                                   Nylon


    Blade Material                                            Brass


    Terminal Screw Material                             Brass


    Ground Screw Material                               Brass


    Rohs Compliant                                         Yes


    Shipping way                                             By air/sea/express


    Place of Origin                                           Guangdong, China (Mainland)


    Sample day                                               1-3days


    Mass order Lead time                                8-15days



     Product features :



    1.America Dupont Nylon construction, resists damage from severe impact, abrasion and chemicals
    2. NEMA Configuration : NEMA L21-20 Power Inlet ,2-Pole, 3-Wire ,Grounding
    3. Certified by c( UL)us and UL file number is ULE500807 (Standard: UL 498)
    4. Electric Ratings: 120/208 Volts, 20 Ampere
    5. Environmental Specifications Flammability: Meets UL94 requirements; V2 rated
    6. Temperature Rating: -40°C to 60°C (-40°F to 140°F) except flat cable:
    7. Temperature Rise: Max. 30ºC (86°F) after 50 cycles of overload at 150% of rated current (DC)
    8. Electrical Specifications Dielectric Voltage: Twice the device rating + 1000V per UL498
    9. Mechanical Specifications Terminal Accommodation: #16 - #8 AWG
    10. Mounting holes interchangeable with competitive units
    11. Back wire terminal clamps for easy, secure wiring
    12. Individual wiring compartments with tapered channel for easy insertion of wires



    HOW TO BUY FROM US :

    1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
    2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
    3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
    4. As soon as the goods are shipped out, we will let you know the tracking number.
    5. For after sales-service. Please contact the sales persons directly or contact us.

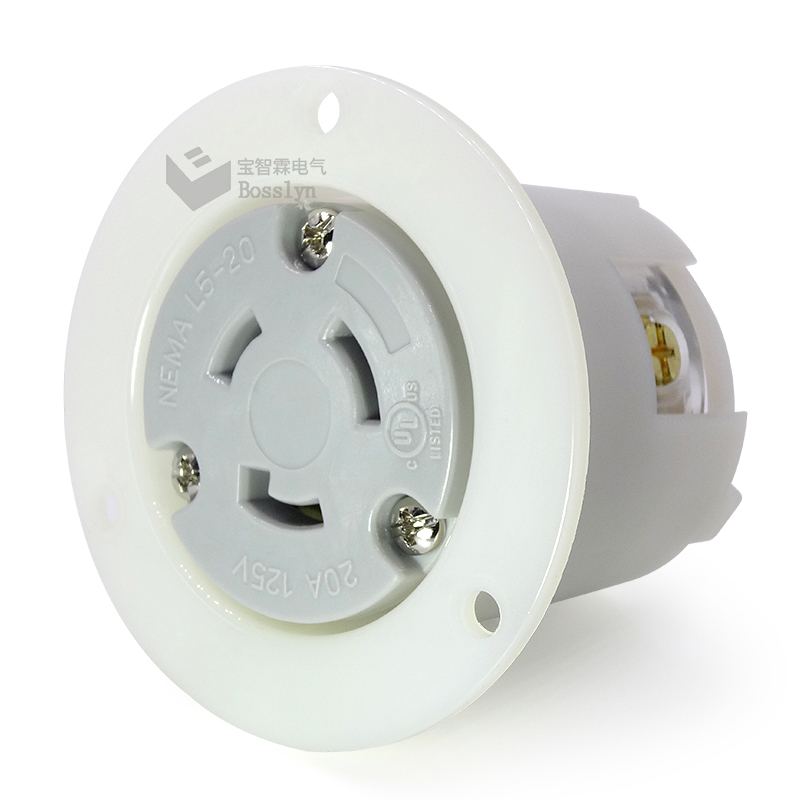

    Photos Details

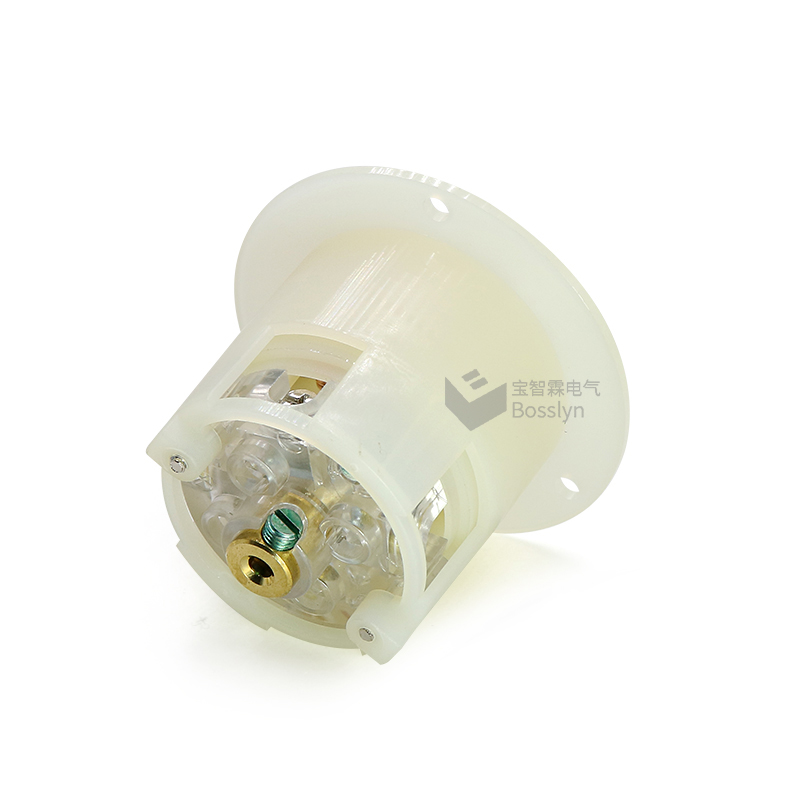

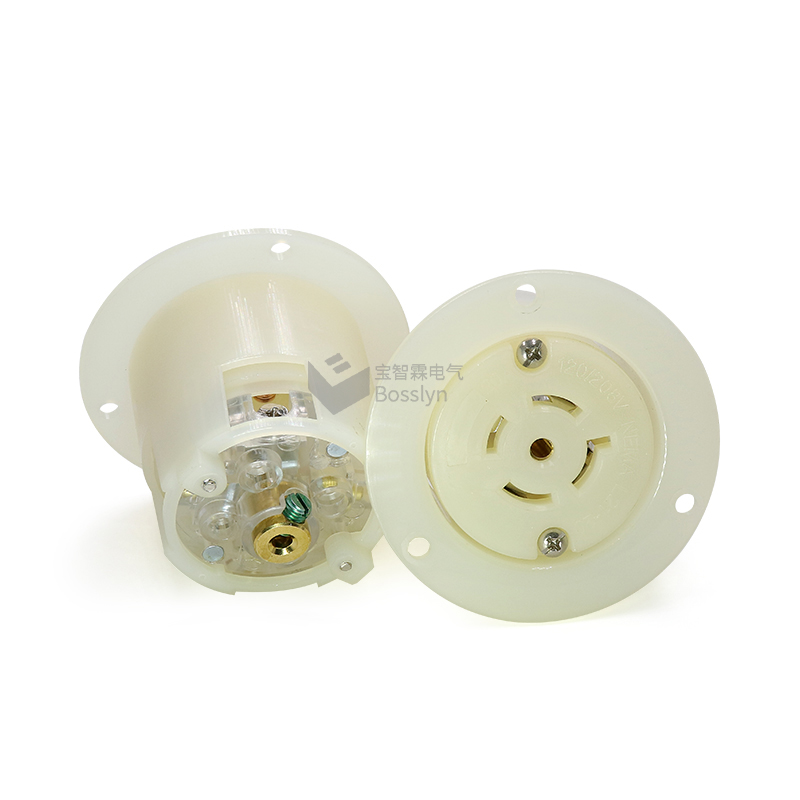

    BL2120FO-3BL2120FO-2BL2120FO-6BL2120FO-1BL2120FO-5
