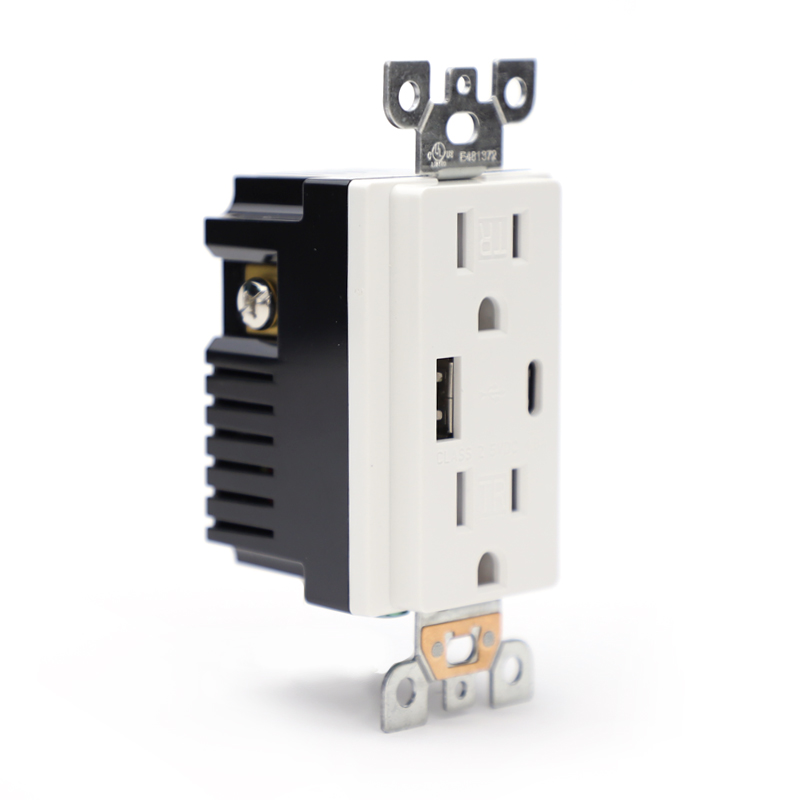

U.S Socket with Type C output with ETL certification

Modle             :   LQ-2-C

Color             :White/Black

Brand name   :  Bosslyn

Certification  : cETL.us

Grounding      :   Standard Grounding

 Body  Material  :  PC

Terminal  Screws  :  Brass

Rated working current:20A

Rated working voltage:125V​​​​​​​


  • Product Overview

    Product application:

    Cafes、Office、Kitchens、Bedrooms、Restaurants、Meeting Rooms、Airport lounges、Labs、Hotels、Schools、Libraries


    Product features :

    Good heat dissipation

    Design of bottom grid,good cooling

    Super high impact resistance and thermal stability

    Cover pans are made of high quality polycarbonate

    Chemical corrosion resistance

    Fingerprint-resistant zinc plated mounting brackets

    Security doors designed to prevent people accidental exposure


    Mechanical characteristics:

    Mechanical life

    Unloaded plug≥5000Sec


    Meet the standard:

    ETL  CSA-C22.2 NO.42  USB+Type C

    Housing material flame retardant grades


    Specifications、Electrical performance、Ambient temperature:

    Rated working current:15A

    Rated working voltage:125V

    Power frequency: 60Hz

    USB +Type C Voltage and current:5VDC 4.2A

    Wire specifications:#14—#10AWG

    USB Compatible products:USB1.0/2.0/3.0 Includes Apple products

    Electric strength:Pressure resistance1500V 50Hz Duration 1Min

    Working temperature:-20℃~60℃

    Insulation resistance:>50MΩ(DC500V)


    Colour:

    Black /Brown /White /lvory /Almond /Gray /Red


    HOW TO BUY FROM US:

    1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
    2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
    3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
    4. As soon as the goods are shipped out, we will let you know the tracking number.
    5. For after sales-service. Please contact the sales persons directly or contact us.

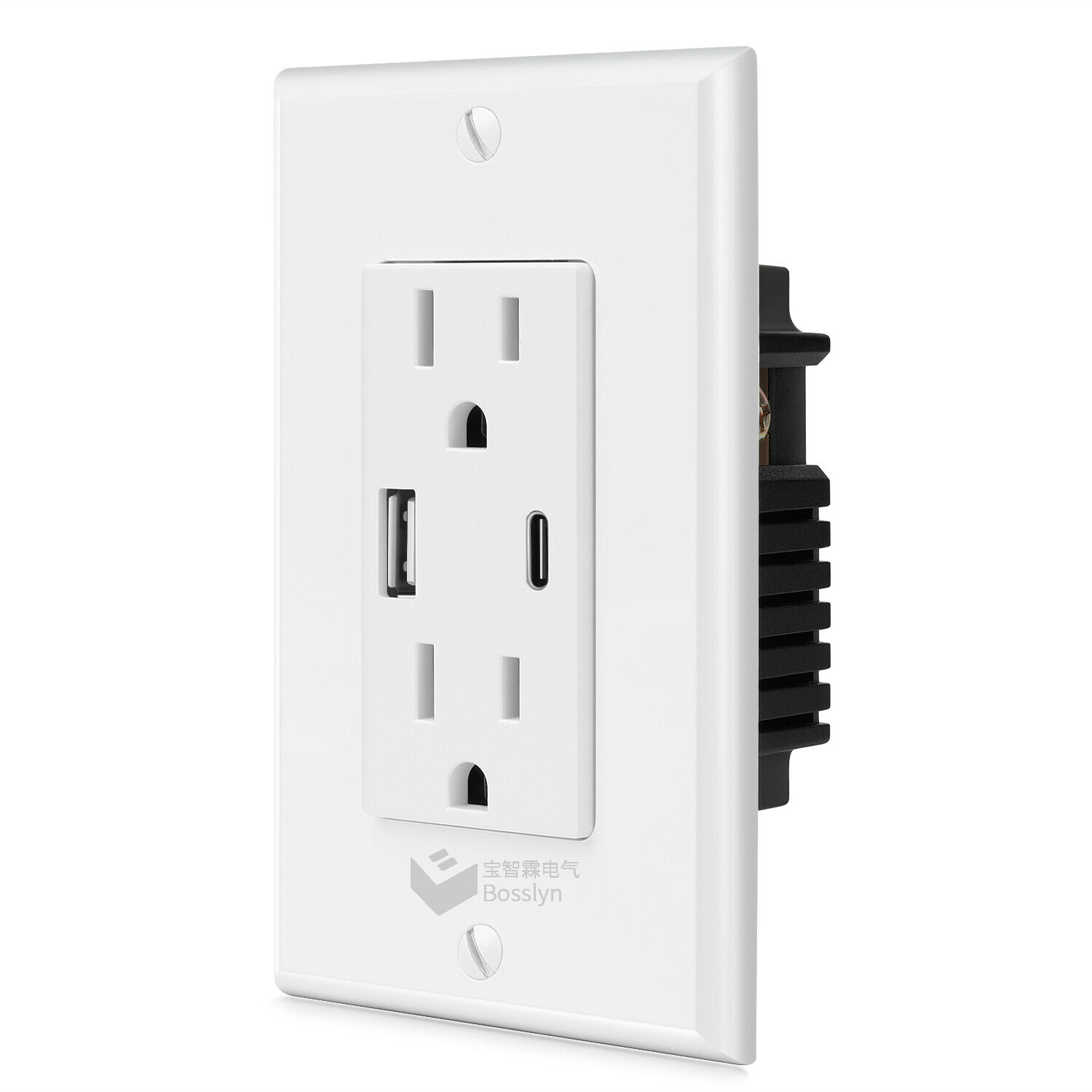

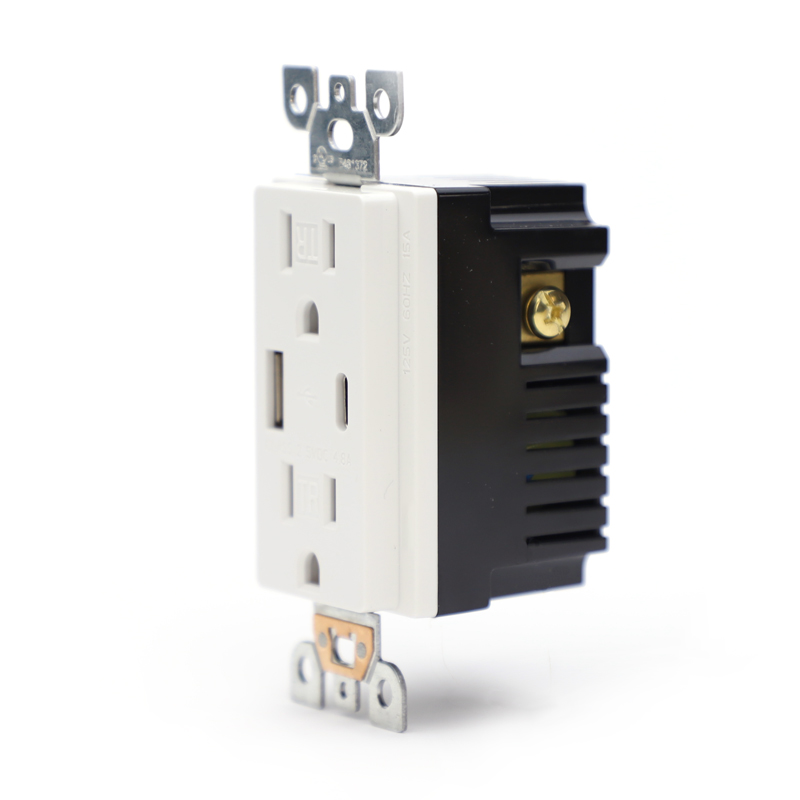

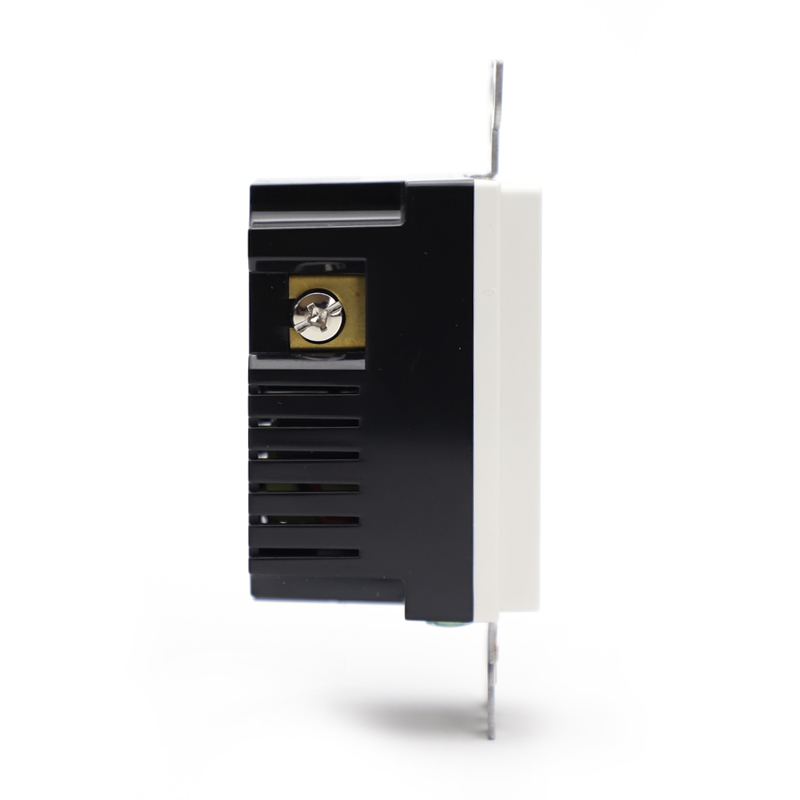

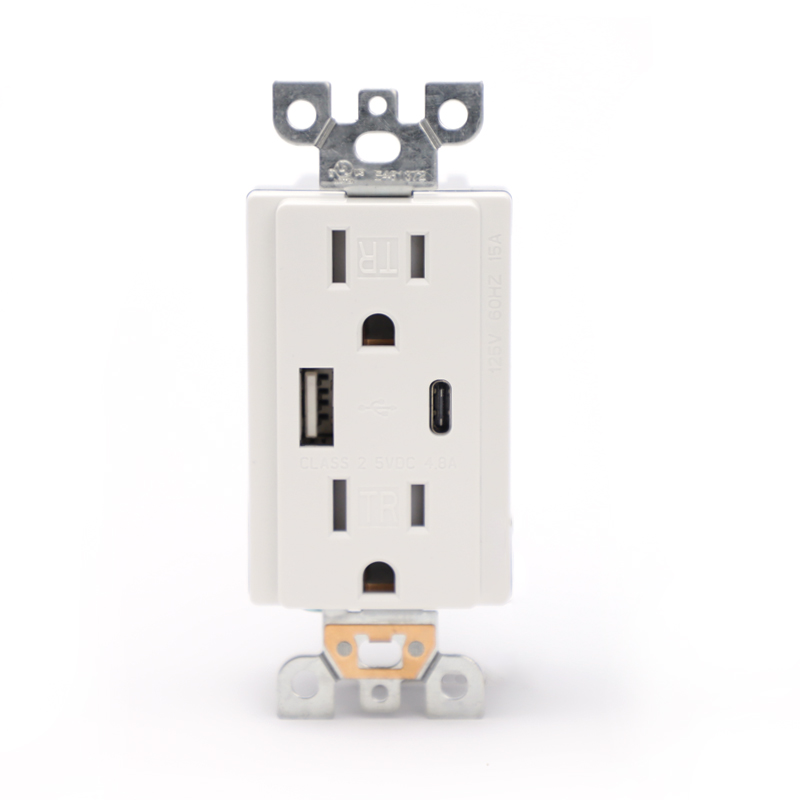

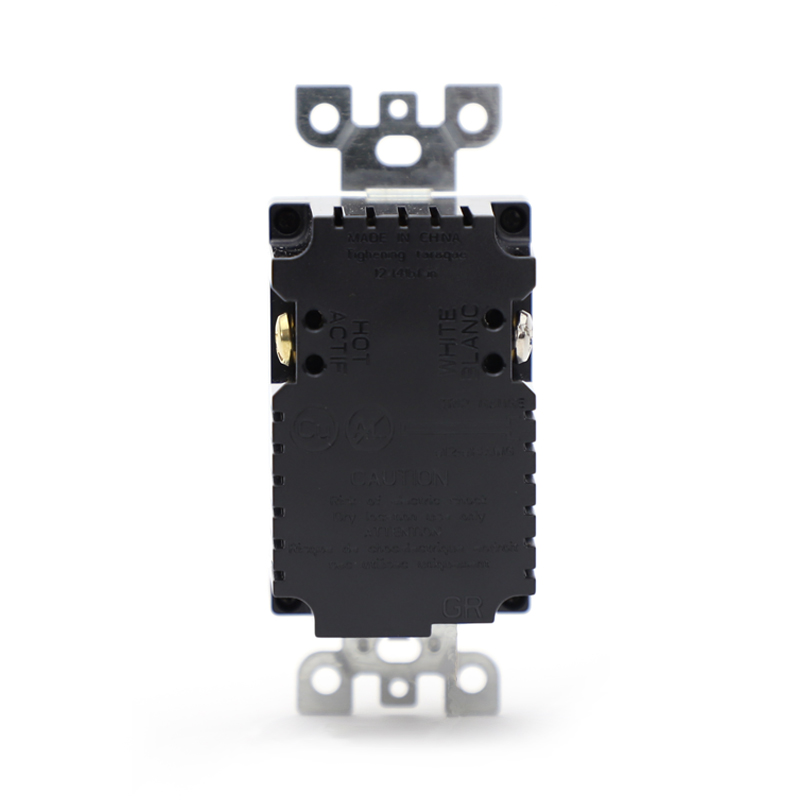

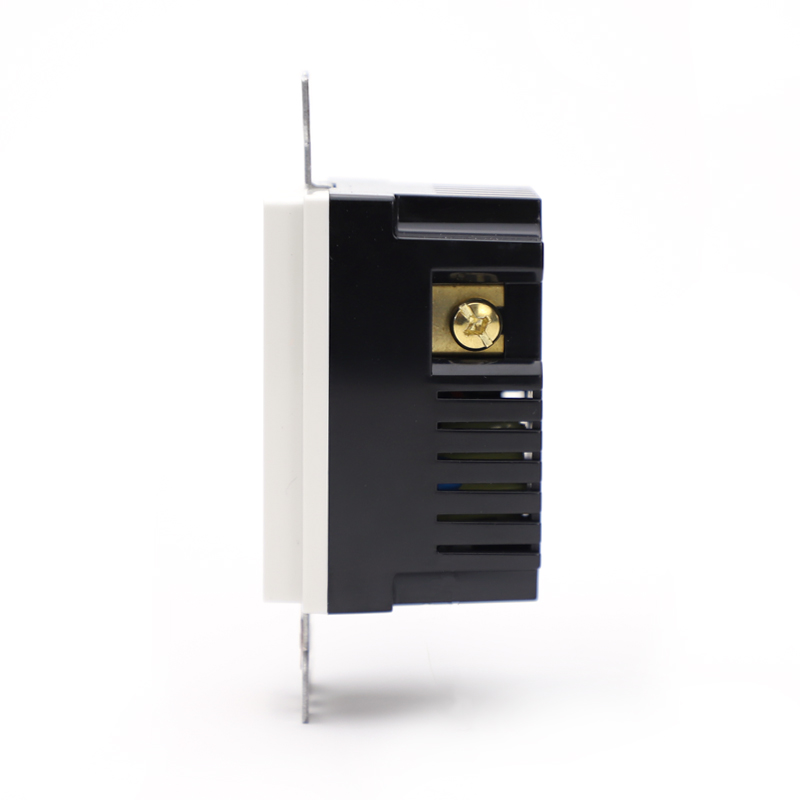

    Photos Details

    s-l1600s-l1600-11

    TYPEC正面LQ-2-CTYPEC侧面LQ-2-C
